Number Masking

The Number Masking service enables two parties to engage in a conversation over the phone without exposing their phone numbers to each other. This service is ideal for businesses that share customer information with third parties.

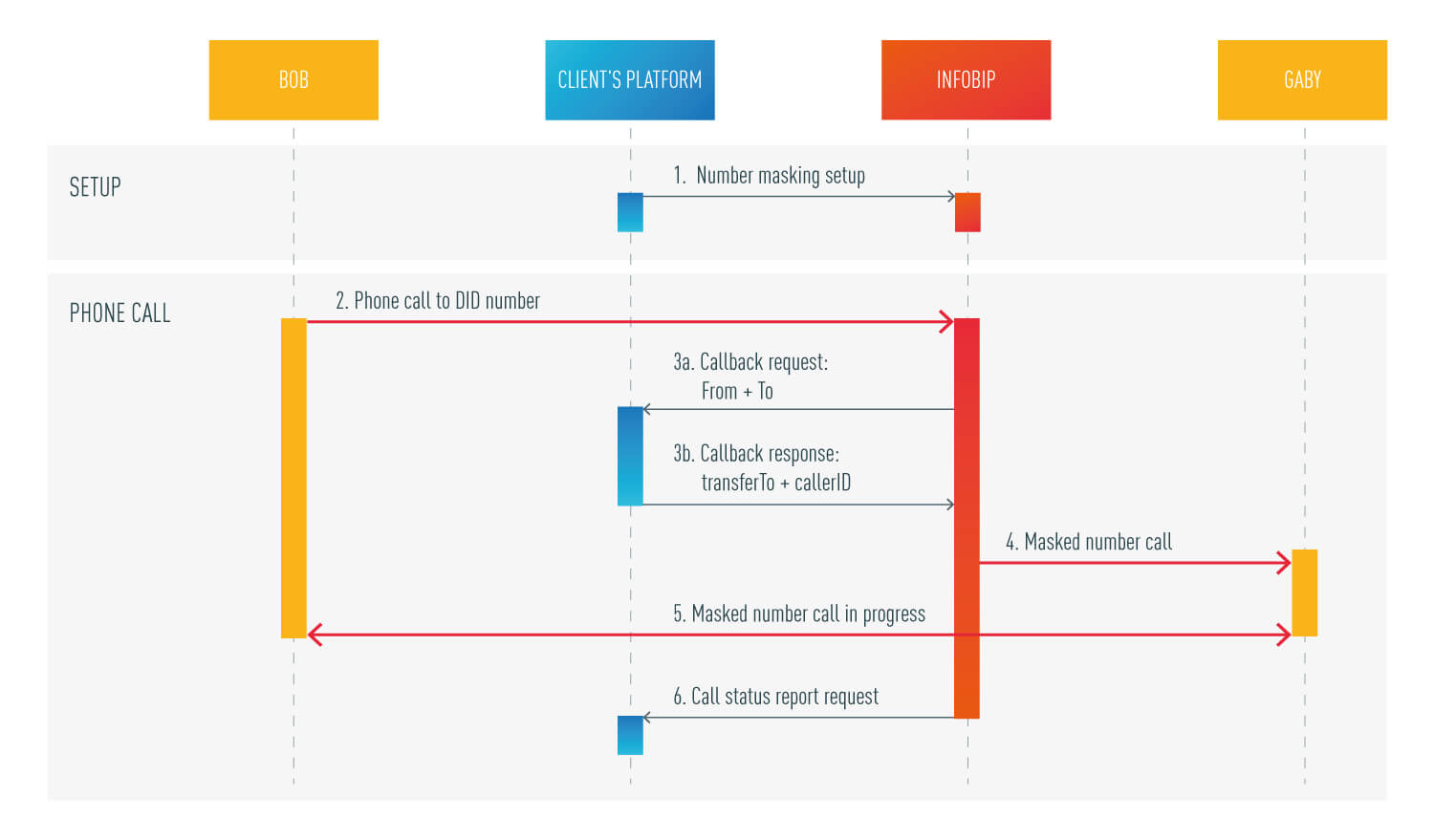

Number masking workflow

Number masking setup:

1. Setup number masking action
2. Audio file upload
3. Callback setup
4. Status URL setup

Additional methods:

• Get number masking action
• Delete a number masking action

Number masking action setup

This method allows you to setup CallBack and Status URLs for DID number.

• CallBack URL is needed in order to get instructions from your side of how to handle incoming calls on a DID number. Instructions are result of mapping logic implemented on your side according to your business case.
  • Status URL will be used to deliver status report after the call is finished.

POST https://api.infobip.com/numbers/1/numbers/{numberKey}/actions

Request parameters

Property name	Type	Description
type	string	Type of number setup (VOICE_NUMBER_MASKING).
callbackUrl	string	Client’s URL to call on each number inbound call.
statusUrl	string	Client’sURL for status report delivery.

Request example

• JSON

POST /numbers/1/numbers/6FED0BC540BFADD9B05ED7D89AAC22FA/action HTTP/1.1
Host: api.infobip.com
Authorization: Basic QWxhZGRpbjpvcGVuIHNlc2FtZQ==
Content-Type: application/json
Accept: application/json

{
 "type" : "VOICE_NUMBER_MASKING",
 "callbackUrl" : "http://client.server/1/callback",
 "statusUrl" : "http://client.server/1/status"
}


Response

• JSON

{
  "actionKey": "6FED0BC540BFADD9BD89AAC22FA",
  "type": "VOICE_NUMBER_MASKING",
  "callbackUrl": "http://client.server/1/callback",
  "statusUrl": "http://client.server/1/status"
}


A successful response is represented by a 200 OK HTTP status code.

Audio file upload

In some situations you may want to play an audio message to the caller instead of forwarding the call to a number from your mapping logic. The audio file should be prerecorded and uploaded to our servers in advance. Audio fileId will be returned in the response of the upload request and this fileId might be received as a response to the callback URL request (described in the following steps).

POST https://api.infobip.com/numbers/1/files

Request parameters

Property name	Type	Description
url	string	URL of the voice file location. Max size of the file is 4MB. Acceptable file format is mp3.
content	string	Byte array of the voice file can be included instead of file URL.

Request example:

• JSON

POST /numbers/1/files HTTP/1.1
Host: api.infobip.com
Authorization: Basic QWxhZGRpbjpvcGVuIHNlc2FtZQ==
Content-Type: application/json
Accept: application/json

{
	"url": "http://www.winhistory.de/more/winstart/mp3/winxp.mp3"
}


Instead of the file URL, the request can contain a byte array of the audio file. In that case, the body of the request should look like this:

{
   "content": "SUQzBAAAAAAAF1RTU0U................oBlRZUxIALUaldwrWAAIoVfL"
}

Response:

• JSON

{
  "fileId": "382a92df-1f6d-4d30-8274-cf508a0c7d62"
}


Response parameters

Property name	Type	Description
fileId	string	Id of the uploaded audio file. Id might be used as a Callback response (see next step).

CallBack URL Request

Upon receiving a call to the DID number from your customer, Infobip’s platform will generate a request to callbackUrl configured on the number. The request contains the caller number and the DID number. In return, Infobip’s platform expects the phone number to forward the call to and caller id which should be presented.

Request parameters

Property name	Type	Description
from	string	Caller number
to	string	Called number
correlationId	string	Unique identifier of the call record, available for both Callback and Status requests.

Request example

• JSON

{
	"from": "41793026727",
	"to": "41793026731",
    "correlationId": "0f754338-1aff-4e09-a933-7d205ca7aed4"
}


Response

• JSON

{
	"command": "dial",
	"phoneNumber": "41793026785",
	"callerId": "41793026700"
}


Depending of the use case, the response may contain the audio file id which will be played back to the caller. In that case, the response should look like this:

{
    "command": "audio",
    "fileId": "382a92df-1f6d-4d30-8274-cf508a0c7d62"
}

Response parameters

Property name	Type	Description
command	string	Command description. Values should be dial or audio.
phoneNumber	string	Destination phone number to call.
callerId	String	Which callerId should be displayed to called party.
fileId	String	File to be played to your customer.

Status URL Request

When a call is terminated, Infobip’s platform will send a status report to the statusUrl that was provided during the setup of the number.

Request parameters

Property name	Type	Description
action	string	configured action (dial or audio).
from	string	Caller number.
to	string	DID number.
transferTo	String	Called party (transfer) number.
duration	int	Duration of the call.
status	String	Status of the call. Could be answered, busy, no answer, failed or congestion.
FileID	String	File that was played to your customer.
ringingTime	String	Date and time when ringing has started.
answeredTime	String	Date and time when call was answered.
correlationId	string	Unique identifier of the call record, available for both Callback and Status requests.

Request example:

• JSON

{
  "action": "dial",
  "from": "41793026727",
  "to": "41793026731",
  "transferTo": "41793026785",
  "duration": "235",
  "status": "answered",
  "ringingTime": "2018-01-01 12:00:00",
  "answeredTime": "2018-01-01 12:00:10",
  "correlationId": "0f754338-1aff-4e09-a933-7d205ca7aed4"
}


A successful response is represented by an HTTP status code 200 OK from the Client’s platform.

Additional APIs

Get number masking action

The method will return a masking action setup on a specific number (numberKey).

GET https://api.infobip.com/numbers/1/numbers/{numberKey}/actions

Request example

• JSON

GET /numbers/1/numbers/6FED0BC540BFADD9B05ED7D89AAC22FA/actions HTTP/1.1
Host: api.infobip.com
Authorization: Basic QWxhZGRpbjpvcGVuIHNlc2FtZQ==
Accept: application/json


Response

• JSON

{
  "actions": [
    {
      "actionKey": "6FED0BC540BFADD9BD89AAC22FA",
      "type": "VOICE_NUMBER_MASKING",
      "callbackUrl": "http://client.server/1/callback",
      "statusUrl": "http://client.server/1/status"
    }
  ]
}


Delete a number masking action

This method will delete a single number masking action (actionKey) on a number (numberKey).

DELETE https://api.infobip.com/numbers/1/numbers/{numberKey}/actions/{actionKey}

Request example

• JSON

DELETE /numbers/1/numbers/6FED0BC540BFADD9B05ED7D89AAC22FA/actions/6FED0BC540BFADD9BD89AAC22FA HTTP/1.1
Host: api.infobip.com
Authorization: Basic QWxhZGRpbjpvcGVuIHNlc2FtZQ==
Accept: application/json


A successful response is represented by an HTTP status code 204 No Content. There is no response body.
